Features
Stainless steel design
graceful curves and lines creates a distinct appearance that enhances any kitchen
350 CFM, four-speed fan
provides the power necessary to capture smoke and fumes produced by high-performance cooking equipment
Four halogen lights
Offer six levels of intensity, from ambient to low/night illumination, to meet different needs
Three removable filters
Trap airborne grease particles and are dishwasher-safe. An indicator light signals when the filters need cleaning.
Timer
Can be set for the fan to automatically shut-off after 5, 10 or 20 minutes of operation

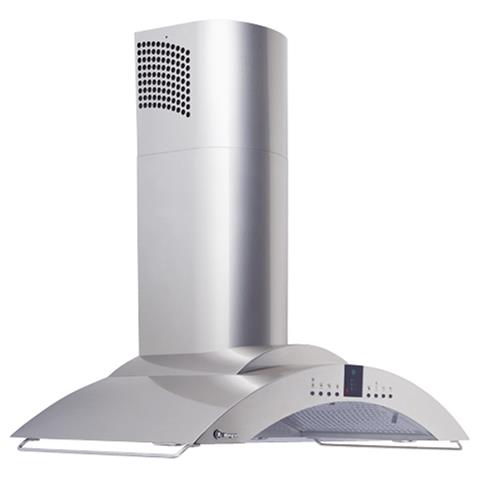

Optional recirculating kit (included)
Can be installed for internal ventilation
| Inputs & Outputs | |
|---|---|
| Blower Levels | 4 Including Boost |
| Control Type | 8 Pushbuttons, Electronic |
| Cooktop Lighting | 4, Halogen |
| Damper in Transition | Yes |
| Exhaust Options | 6" Round Duct (Extends to 8' Ceiling) |
| Filter Cleaning Reminders | Yes |
| Lighting Levels | 6 |
| Recirculating Capable | Yes, Included |
| Removable Stainless Steel Filters | 3 |
| Time Delay Shut-Off | Yes |
| Variable Speed Fan | Yes |
| Vertical Exhaust Blower Rating (CFM) | 350 |
| Appearance | |
| Color Appearance | Stainless Steel |
| Design Style | Chimney |
| Exterior Design | Chimney - Island |
| Weights & Dimensions | |
| Approximate Shipping Weight | 106.0 |
| Cabinet Width | 36.0 |
| Net Weight | 76.0 |
| Overall Depth | 27.5 |
| Overall Height | 41.5 |
| Overall Width | 36.5 |
| Power / Ratings | |
| Amp Rating at 120V | 3.74 |
| Accessories | |
| Optional 10' Ceiling Extension | ZX8510SPSS for 9.5' to 10' ceilings |
| Warranty | |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
